AMD X870 AMD Socket AM5 Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors Digital twin 14+2+2 phases VRM solution Dual Ch
search
  • AMD X870 AMD Socket AM5 Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors Digital twin 14+2+2 phases VRM solution Dual Ch
  • AMD X870 AMD Socket AM5 Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors Digital twin 14+2+2 phases VRM solution Dual Ch
  • AMD X870 AMD Socket AM5 Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors Digital twin 14+2+2 phases VRM solution Dual Ch

AMD X870 AMD Socket AM5 Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors Digital twin 14+2+2 phases VRM solution Dual Ch

$344.55
Tax included

X870 EAGLE WIFI7 Key Features AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors Digital twin 14+2+2 phases VRM solution Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click：M.2 heatsinks with screwless design Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW. Ultra-Fast Storage：3*M.2 slots, including 1* PCIe 5.0 x4 Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard Fast Networking：2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI

Quantity

AMD X870; AMD Socket AM5 Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors;Digital twin 14+2+2 phases VRM solution;Dual Ch

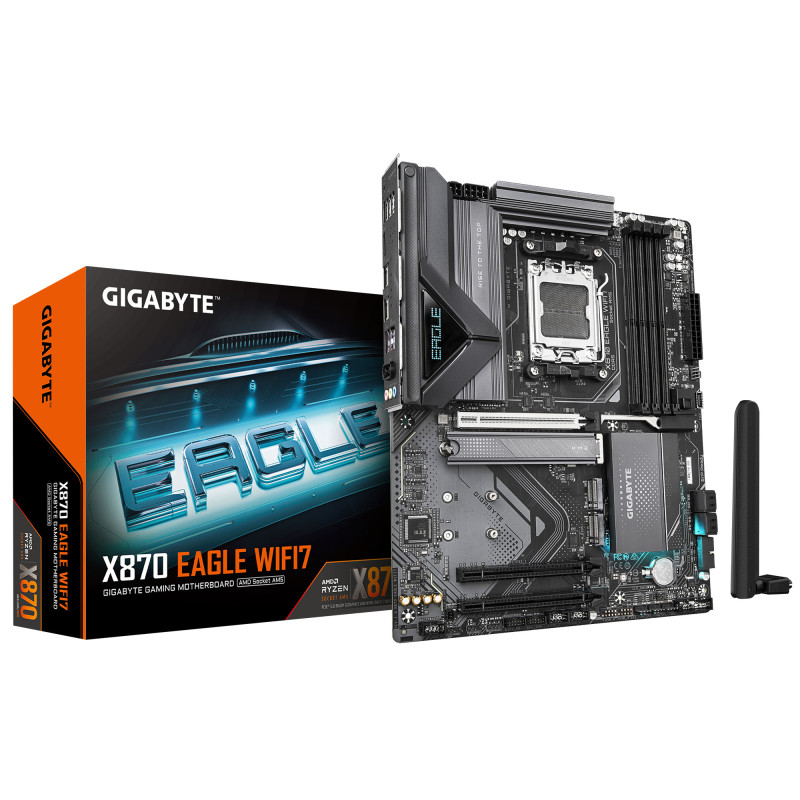

X870 EAGLE WIFI7

Key Features

  • AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
  • Digital twin 14+2+2 phases VRM solution
  • Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click：M.2 heatsinks with screwless design
  • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
  • Ultra-Fast Storage：3*M.2 slots, including 1* PCIe 5.0 x4
  • Efficient Thermal：VRM Thermal Armor Advanced  & M.2 Thermal Guard
  • Fast Networking：2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
  • Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI

Supplier details

Synnex SKUGA-X870-EAGLE-WIFI7
Synnex Product CodeGA-X870-EAGLE-WIFI7@GIGA
Synnex Category CodeMG01
BrandAMD
Stock14
Source URLhttps://www.synnex.com.au/en/B2B/Menu/product-offering/ProductDetails/?productCode=GA-X870-EAGLE-WIFI7%40GIGA

Specifications

AudioRealtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
ChipsetAMD X870
Form FactorATX Form Factor; 30.5cm x 24.4cm
I/O Connectors1 x Q-Flash Plus button, 2 x antenna connectors (2T2R), 1 x HDMI port, 2 x USB4® USB Type-C® ports (DisplayPort), 1 x USB 3.2 Gen 2 Type-A port (red), 3 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks
Integrated CPU GraphicsIntegrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support native HDMI 2.1 TMDS compatible ports.
LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
PCI Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 900/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Processor SupportAMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors
RAIDRAID 0, RAID 1, and RAID 10 support for SATA storage devices
RAM Type/Bus/MaxSupport for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
SocketAMD Socket AM5
Storage Interface1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs * The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2B_SB connector operates at up to x2 mode when a PCIe SSD is installed in the M2C_SB connector. 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
Wireless & BluetoothMediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard; Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard
