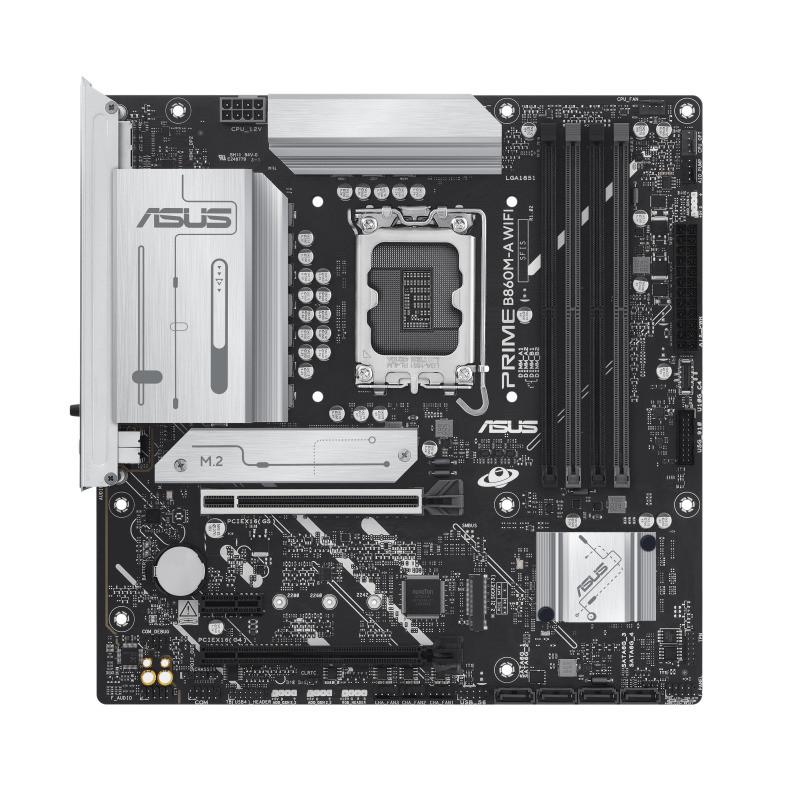

ASUS PRIME B860M-A WIFI-CSM MB B860M, 4x DDR5, 1x PCI-E 5.0 x16, 2x M.2, 4x SATA3, WiFi
$285.36
Tax included
PRIME B860M-A WIFI-CSM ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-A WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
ASUS PRIME B860M-A WIFI-CSM MB B860M, 4x DDR5, 1x PCI-E 5.0 x16, 2x M.2, 4x SATA3, WiFi
PRIME B860M-A WIFI-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-A WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Supplier details
| Synnex SKU | PRIME-B860M-A-WIFI-CSM |
|---|---|
| Synnex Product Code | PRIME-B860M-A-WIFI-CSM@ASUSO |
| Synnex Category Code | MG01 |
| Brand | ASUS - Components & Peripheral |
| Stock | 100 |
| Source URL | https://www.synnex.com.au/en/B2B/Menu/product-offering/ProductDetails/?productCode=PRIME-B860M-A-WIFI-CSM%40ASUSO |
Specifications
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
|---|---|
| Chipset | Intel® B860 Chipset |
| Form Factor | micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
| I/O Connectors | 1 x USB 20Gbps port (1 x USB Type-C®), 1 x USB 10Gbps port (1 x Type-A), 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A ), 2 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks |
| Integrated CPU Graphics | 2 x DisplayPort, 1 x HDMI™ port |
| LAN | 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard |
| PCI Slots | Intel® Core™ Ultra Processors(series 2): 1 x PCIe 5.0 x16 slot; Intel® B860 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x1 slot |
| Processor Support | Support Intel® Core™ Ultra Processors (Series 2) |
| RAID | Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| RAM Type/Bus/Max | 4 x DIMM slots, max. 256GB, DDR5, Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM), Dual channel memory architecture, DIMM Fit, Supports Intel® Extreme Memory Profile (XMP) memory module, ASUS Enhanced Memory Profile III(AEMPIII) |
| Socket | LGA1851 |
| Storage Interface | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; Intel® Core™ Ultra Processors (Series 2)L M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); Intel®B860 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes), 4 x SATA 6Gb/s ports |
| Warranty | 3 years |
| Weight | 1kg |
| Wireless & Bluetooth | Wi-Fi 6E, 2x2 Wi-Fi 6E (802.11ax), Supports 2.4/5/6GHz frequency band, Bluetooth® v5.3 |
PRIME B860M-A WIFI-CSM ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-A WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
