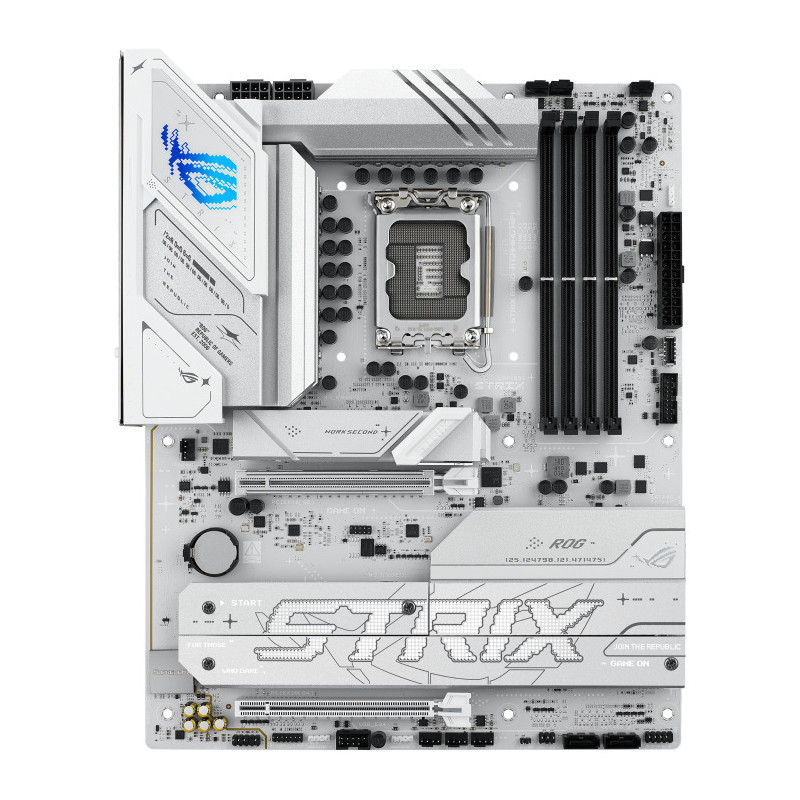

ASUS ROG STRIX B860-A GAMING WIFI MB B860, 4x DDR5, 1x PCI-E 5.0 x16, 3x M.2, 4x SATA3, WiFi 6
$399.09
Tax included
ROG STRIX B860-A GAMING WIFI With NPU support and AI-enhanced solutions, the ROG STRIX B860-A Gaming WiFi is ready for advanced AI PC applications. Featuring a USB4® (20Gbps) port, PCIe® 5.0, and Aura Sync RGB lighting, it offers fast data transfers, versatile connectivity, and a customizable aesthetic to match your style.
ASUS ROG STRIX B860-A GAMING WIFI MB B860, 4x DDR5, 1x PCI-E 5.0 x16, 3x M.2, 4x SATA3, WiFi 6
ROG STRIX B860-A GAMING WIFI
With NPU support and AI-enhanced solutions, the ROG STRIX B860-A Gaming WiFi is ready for advanced AI PC applications. Featuring a USB4® (20Gbps) port, PCIe® 5.0, and Aura Sync RGB lighting, it offers fast data transfers, versatile connectivity, and a customizable aesthetic to match your style.
Supplier details
| Synnex SKU | ROG-STRIX-B860-A-GAMING-WIFI |
|---|---|
| Synnex Product Code | ROG-STRIX-B860-A-GAMING-WIFI@ASUSO |
| Synnex Category Code | MG01 |
| Brand | ASUS - Components & Peripheral |
| Stock | 40 |
| Source URL | https://www.synnex.com.au/en/B2B/Menu/product-offering/ProductDetails/?productCode=ROG-STRIX-B860-A-GAMING-WIFI%40ASUSO |
Specifications
| Audio | Realtek ALC1220P 7.1 Surround Sound |
|---|---|
| Chipset | Intel® B860 Chipset |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| I/O Connectors | 1 x USB4® (20Gbps) port (1 x USB Type-C®), 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®), 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Intel® 2.5Gb Ethernet port, 2 x Audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button |
| Integrated CPU Graphics | 1 x DisplayPort, 1 x HDMI™ port, 1 x USB4® (20Gbps) ports support USB Type-C® display outputs |
| LAN | 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard |
| PCI Slots | Intel® Core™ Ultra Processors (Series 2): 1 x PCIe 5.0 x16 slot; Intel® B860 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Processor Support | Support Intel® Core™ Ultra Processors (Series 2), Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| RAID | Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| RAM Type/Bus/Max | 4 x DIMM slots, max. 256GB, DDR5, Supports up to 8600+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM), Dual channel memory architecture, DIMM Fit, Supports Intel® Extreme Memory Profile (XMP) memory module, ASUS Enhanced Memory Profile III(AEMPIII) |
| Socket | LGA1851 |
| Storage Interface | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel® Core™ Ultra Processors (Series 2): M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode); Intel® B860 Chipset: M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports |
| Wireless & Bluetooth | Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate, Bluetooth® v5.4*** |
ROG STRIX B860-A GAMING WIFI With NPU support and AI-enhanced solutions, the ROG STRIX B860-A Gaming WiFi is ready for advanced AI PC applications. Featuring a USB4® (20Gbps) port, PCIe® 5.0, and Aura Sync RGB lighting, it offers fast data transfers, versatile connectivity, and a customizable aesthetic to match your style.
