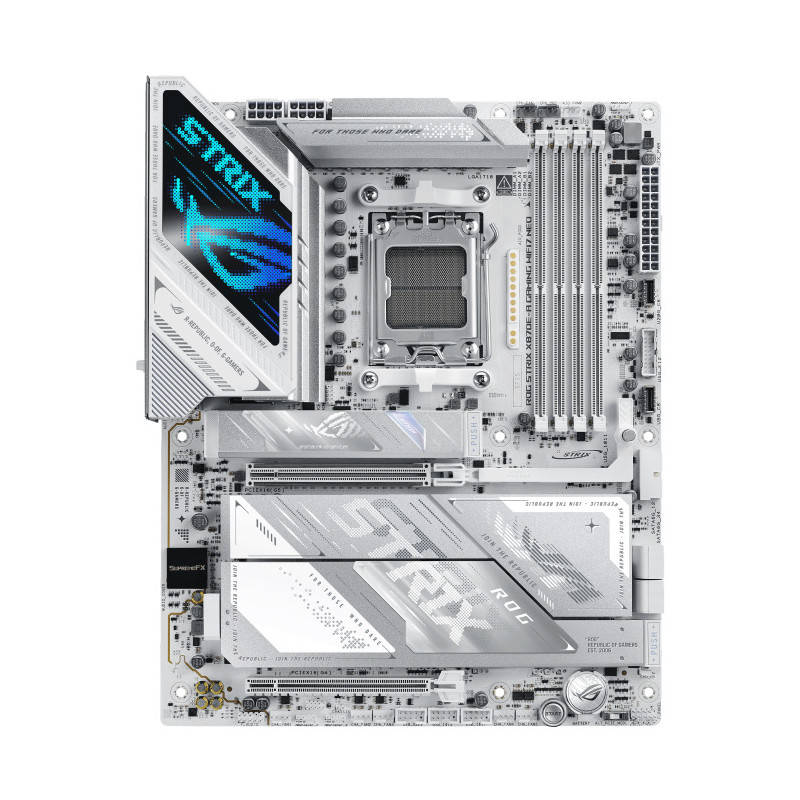

ROG STRIX X870E-A GAMING NEO//SOCKET AM5,X870E,MB
$840.91
Tax included
ROG STRIX X870E-A GAMING WIFI7 NEO Elevate your build with the ROG Strix X870E-A Gaming WiFi7 Neo, featuring a sleek white aesthetic and a design that maximizes the performance of AMD Ryzen™ 9000 Series processors. PCIe® 5.0, ASUS AI features including AI Cache Boost and ASUS AI Advisor—and exclusive memory technologies such as NitroPath DRAM Technology, DIMM Fit Pro, and AEMP—simplify setup and deliver optimized DDR5 performance. High-speed connectivity is boosted by dual USB4® Type-C ports, WiFi 7, and Realtek® 5G Ethernet, while enhanced M.2 cooling helps ensure stability for demanding workloads. It is the ultimate blend of style and performance.
ROG STRIX X870E-A GAMING NEO//SOCKET AM5,X870E,MB
ROG STRIX X870E-A GAMING WIFI7 NEO
Elevate your build with the ROG Strix X870E-A Gaming WiFi7 Neo, featuring a sleek white aesthetic and a design that maximizes the performance of AMD Ryzen™ 9000 Series processors. PCIe® 5.0, ASUS AI features including AI Cache Boost and ASUS AI Advisor—and exclusive memory technologies such as NitroPath DRAM Technology, DIMM Fit Pro, and AEMP—simplify setup and deliver optimized DDR5 performance. High-speed connectivity is boosted by dual USB4® Type-C ports, WiFi 7, and Realtek® 5G Ethernet, while enhanced M.2 cooling helps ensure stability for demanding workloads. It is the ultimate blend of style and performance.
Supplier details
| Synnex SKU | ROG-STRIX-X870E-A-GAMING-WIFI7-NEO |
|---|---|
| Synnex Product Code | ROG-STRIX-X870E-A-GAMING-WIFI7-NEO@ASUSO |
| Synnex Category Code | MG01 |
| Brand | ASUS - Components & Peripheral |
| Stock | 4 |
| Source URL | https://www.synnex.com.au/en/B2B/Menu/product-offering/ProductDetails/?productCode=ROG-STRIX-X870E-A-GAMING-WIFI7-NEO%40ASUSO |
Specifications
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
|---|---|
| Chipset | AMD X870E |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| I/O Connectors | 2 x USB4® (40Gbps) ports (2 x USB Type-C®with DP Alt mode), 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD**), 4 x USB 5Gbps ports (4 x Type-A), 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Realtek® 5Gb Ethernet port, 2 x Audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button |
| Integrated CPU Graphics | 1 x HDMI™ port, 2 x USB4® (40Gbps) ports support USB Type-C® display outputs |
| LAN | 1 x Realtek® 5Gb Ethernet, ASUS LANGuard |
| PCI Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot (supports x16 mode); AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors: 1 x PCIe 4.0 x16 slots (supports x8 mode); AMD Ryzen™ 8500 & 8300 Series Desktop Processors*: 1 x PCIe 4.0 x16 slots (supports x4 mode); AMD X870E Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Processor Support | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| RAID | AMD RAIDXpert2 Technology Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10 |
| RAM Type/Bus/Max | 4 x DIMM slots, max. 256GB, DDR5; Supports up to: 8600+MT/s(OC)**/8200+MT/s(OC)*** with Ryzen™ 9000 Series Processors, 9600+MT/s(OC)**/9000+MT/s(OC)*** with Ryzen™ 8000 Series Processors, 8000+MT/s(OC)**/8000+MT/s(OC)*** with Ryzen™ 7000 Series Processors; ECC and Non-ECC, Un-buffered DIMM; Dual channel memory architecture ; Supports AMD Extended Profiles for Overclocking (EXPO™); Supports DIMM Fit and DIMM Fit Pro; NitroPath DRAM Technology; ASUS Enhanced Memory Profile (AEMP) |
| Socket | AMD Socket AM5 |
| Storage Interface | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports; AMD Ryzen™ 9000 & 7000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode); AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode); AMD Ryzen™ 8500 & 8300 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M), type 2280/22110 (Not supports); AMD X870E Chipset: M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports |
| Wireless & Bluetooth | Wi-Fi 7 (MediaTek MT7925), 2x2 Wi-Fi 7* (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth, Bluetooth® v5.4 (support LE Audio) |
ROG STRIX X870E-A GAMING WIFI7 NEO Elevate your build with the ROG Strix X870E-A Gaming WiFi7 Neo, featuring a sleek white aesthetic and a design that maximizes the performance of AMD Ryzen™ 9000 Series processors. PCIe® 5.0, ASUS AI features including AI Cache Boost and ASUS AI Advisor—and exclusive memory technologies such as NitroPath DRAM Technology, DIMM Fit Pro, and AEMP—simplify setup and deliver optimized DDR5 performance. High-speed connectivity is boosted by dual USB4® Type-C ports, WiFi 7, and Realtek® 5G Ethernet, while enhanced M.2 cooling helps ensure stability for demanding workloads. It is the ultimate blend of style and performance.
