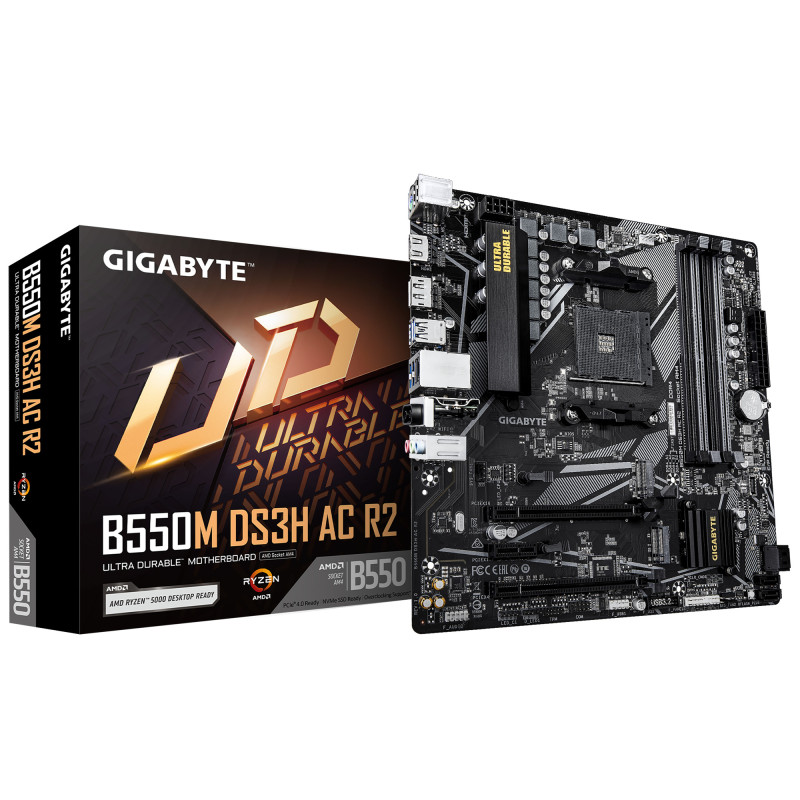

B550M DS3H AC R2 Motherboard AMD Socket AM4:Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors Dual Channel DDR4:4*DIMMs
$144.55
Tax included
B550M DS3H AC R2 AMD Socket AM4：Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors Digital 5+3 phases VRM solution Dual Channel DDR4：4*DIMMs WIFI EZ-Plug：Quick and easy design for Wi-Fi antenna installation EZ-Latch：PCIe slots with Quick Release Design Ultra-Fast Storage：2*M.2 slots, including PCIe 4.0 x1 Efficient Thermal：VRM Thermal Armor Advanced Fast Networking：GbE LAN & Wi-Fi 5 Extended Connectivity：HDMI, Displayport PCIe UD Slot：PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
B550M DS3H AC R2 Motherboard AMD Socket AM4:Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors Dual Channel DDR4:4*DIMMs
B550M DS3H AC R2
- AMD Socket AM4：Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors
- Digital 5+3 phases VRM solution
- Dual Channel DDR4：4*DIMMs
- WIFI EZ-Plug：Quick and easy design for Wi-Fi antenna installation
- EZ-Latch：PCIe slots with Quick Release Design
- Ultra-Fast Storage：2*M.2 slots, including PCIe 4.0 x1
- Efficient Thermal：VRM Thermal Armor Advanced
- Fast Networking：GbE LAN & Wi-Fi 5
- Extended Connectivity：HDMI, Displayport
- PCIe UD Slot：PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Supplier details
| Synnex SKU | GA-B550M-DS3H-AC-R2 |
|---|---|
| Synnex Product Code | GA-B550M-DS3H-AC-R2@GIGA |
| Synnex Category Code | MG01 |
| Brand | Gigabyte |
| Stock | 100 |
| Source URL | https://www.synnex.com.au/en/B2B/Menu/product-offering/ProductDetails/?productCode=GA-B550M-DS3H-AC-R2%40GIGA |
Specifications
| Audio | Realtek® ALC1220 CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
|---|---|
| Chipset | AMD B550 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| I/O Connectors | 2 x USB 2.0/1.1 ports, 1 x PS/2 keyboard/mouse port, 1 x HDMI port, 1 x DisplayPort, 4 x USB 3.2 Gen 1 ports, 1 x RJ-45 port, 2 x antenna connectors, 3 x audio jacks |
| Integrated CPU Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| PCI Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4 - 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1 |
| Processor Support | AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors |
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| RAM Type/Bus/Max | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Socket | AMD Socket AM4 |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs, AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs; 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs; 4 x SATA 6Gb/s connectors |
| Warranty | 3 years |
| Wireless & Bluetooth | Realtek® Wi-Fi RTL8821CE - WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 5.0 - Support for 11ac wireless standard |
