- New

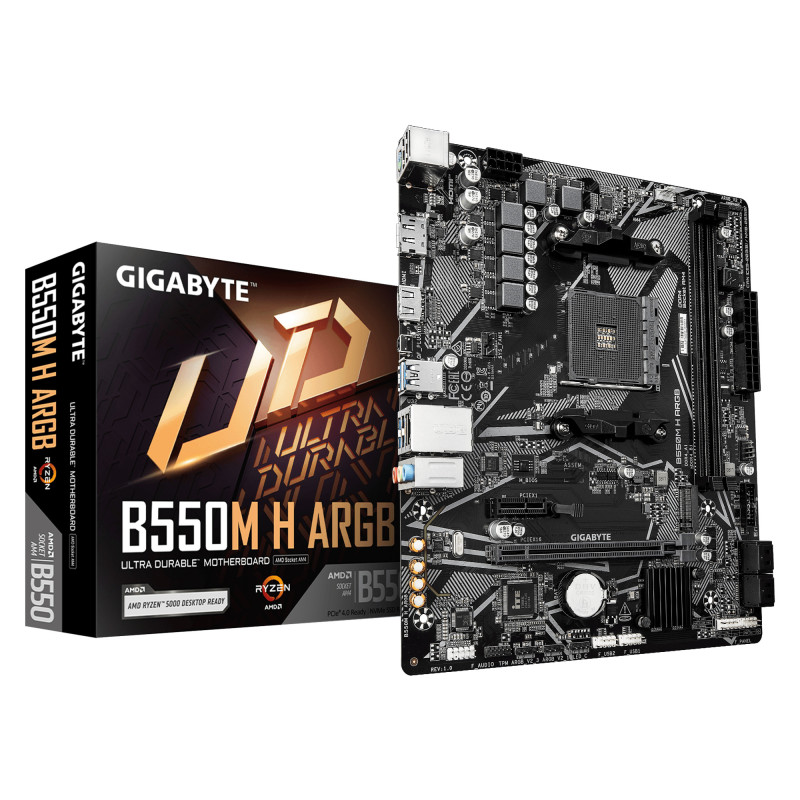

AMD AM4 B550/rev.1.0 Micro ATX
$119.00
Tax included
AMD B550 Ultra Durable Motherboard with GbE LAN, ARGB header, Q-Flash Plus, PCIe 4.0 x4 M.2, Smart Fan 6, Anti-Sulfur Resistors Design Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs Integrated ARGB header and Q-Flash Plus button PCIe Gen4.0 x4 M.2 with PCIe NVMe & SATA mode support Fast Network: GbE LAN 8-Channel HD Audio with High Quality Audio Capacitors Rear HDMI and DisplayPort for Multi-display Support Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP GIGABYTE CONTROL CENTER (GCC), Simple and Easy Use
AMD AM4 B550/rev.1.0 Micro ATX
AMD B550 Ultra Durable Motherboard with GbE LAN, ARGB header, Q-Flash Plus, PCIe 4.0 x4 M.2, Smart Fan 6, Anti-Sulfur Resistors Design
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
- Integrated ARGB header and Q-Flash Plus button
- PCIe Gen4.0 x4 M.2 with PCIe NVMe & SATA mode support
- Fast Network: GbE LAN
- 8-Channel HD Audio with High Quality Audio Capacitors
- Rear HDMI and DisplayPort for Multi-display Support
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- GIGABYTE CONTROL CENTER (GCC), Simple and Easy Use
Supplier details
| Synnex SKU | GA-B550M-H-ARGB |
|---|---|
| Synnex Product Code | GA-B550M-H-ARGB@GIGA |
| Synnex Category Code | MG01 |
| Brand | Gigabyte |
| Stock | 100 |
| Source URL | https://www.synnex.com.au/en/B2B/Menu/product-offering/ProductDetails/?productCode=GA-B550M-H-ARGB%40GIGA |
Specifications
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
|---|---|
| Chipset | AMD B550 |
| Form Factor | Micro ATX Form Factor; 23.3cm x 19.8cm |
| I/O Connectors | 2 x USB 2.0/1.1 ports, 1 x PS/2 keyboard/mouse port, 1 x DisplayPort, 1 x HDMI port, 1 x Q-Flash Plus button, 4 x USB 3.2 Gen 1 ports, 1 x RJ-45 port, 3 x audio jacks |
| Integrated CPU Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| PCI Slots | 1 x PCI Express x16 slot, integrated in the CPU: - AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0 x16 mode Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Processor Support | AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors |
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| RAM Type/Bus/Max | 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Socket | AMD Socket AM4 |
| Storage Interface | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: - AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs; 4 x SATA 6Gb/s connectors |
AMD B550 Ultra Durable Motherboard with GbE LAN, ARGB header, Q-Flash Plus, PCIe 4.0 x4 M.2, Smart Fan 6, Anti-Sulfur Resistors Design Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs Integrated ARGB header and Q-Flash Plus button PCIe Gen4.0 x4 M.2 with PCIe NVMe & SATA mode support Fast Network: GbE LAN 8-Channel HD Audio with High Quality Audio Capacitors Rear HDMI and DisplayPort for Multi-display Support Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP GIGABYTE CONTROL CENTER (GCC), Simple and Easy Use
