- New

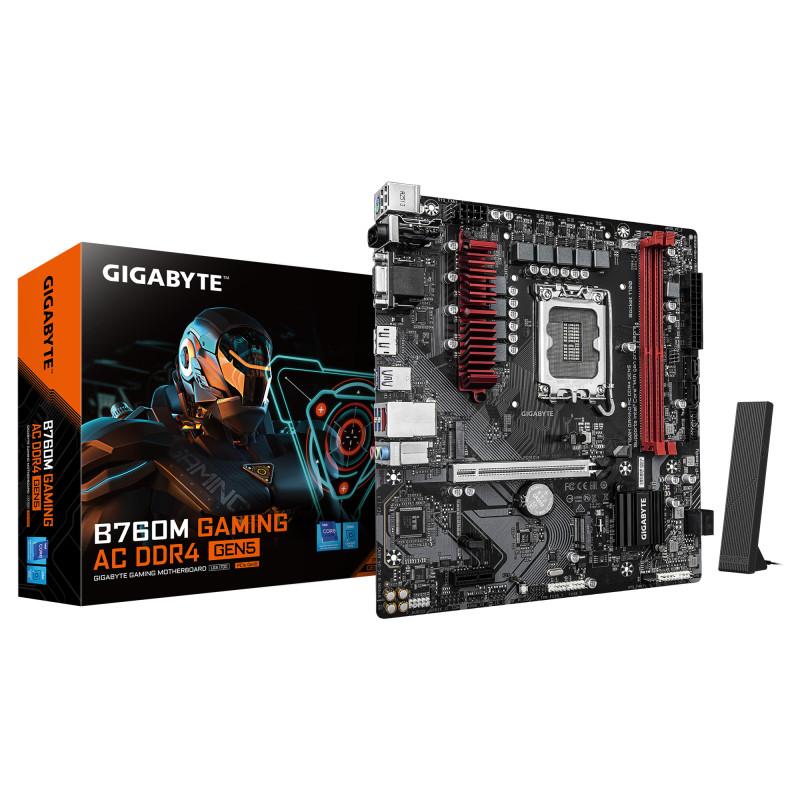

Intel B760/Socket1700/rev.1.0 Micro ATX/RTL8821CE
$150.00
Tax included
B760M GAMING AC DDR4 GEN5 Key Features PCIe Gen5 Performance : Perfect Sync to Win Supports Intel® Core™ 14th/ 13th /12th processors WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal. EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design Ultra Durable™ SMD PCIe 5.0 Armor for enhanced graphics card support Unparalleled Performance : Hybrid 6+2+1 Phases VRM Solution Dual Channel DDR4 : 2*DIMMs XMP Memory Module Support Fast Networks : 2.5GbE LAN & Wi-Fi 802.11ac Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors Extended Connectivity : Rear USB-C® 5Gb/s, DP, HDMI, D-Sub Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus : Update BIOS Withou...
Intel B760/Socket1700/rev.1.0 Micro ATX/RTL8821CE
B760M GAMING AC DDR4 GEN5
Key Features
- PCIe Gen5 Performance : Perfect Sync to Win
- Supports Intel® Core™ 14th/ 13th /12th processors
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal.
- EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
- Ultra Durable™ SMD PCIe 5.0 Armor for enhanced graphics card support
- Unparalleled Performance : Hybrid 6+2+1 Phases VRM Solution
- Dual Channel DDR4 : 2*DIMMs XMP Memory Module Support
- Fast Networks : 2.5GbE LAN & Wi-Fi 802.11ac
- Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
- Extended Connectivity : Rear USB-C® 5Gb/s, DP, HDMI, D-Sub
- Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
Supplier details
| Synnex SKU | GA-B760M-G-AC-D4-GEN5 |
|---|---|
| Synnex Product Code | GA-B760M-G-AC-D4-GEN5@GIGA |
| Synnex Category Code | MG01 |
| Brand | Gigabyte |
| Stock | 100 |
| Source URL | https://www.synnex.com.au/en/B2B/Menu/product-offering/ProductDetails/?productCode=GA-B760M-G-AC-D4-GEN5%40GIGA |
Specifications
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
|---|---|
| Chipset | Intel® B760 Express Chipset |
| Form Factor | Micro ATX Form Factor; 24.4cm x 22.5cm |
| I/O Connectors | 2 x USB 2.0/1.1 ports, 1 x PS/2 keyboard/mouse port, 2 x antenna connectors (1T1R), 1 x D-Sub port, 1 x HDMI port, 1 x DisplayPort, 3 x USB 3.2 Gen 1 ports, 1 x USB Type-C® port, with USB 3.2 Gen 1 support, 1 x RJ-45 port, 3 x audio jacks |
| Integrated CPU Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| PCI Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16; Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Processor Support | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage device |
| RAM Type/Bus/Max | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Socket | LGA1700 socket |
| Storage Interface | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB); - 4 x SATA 6Gb/s connectors |
| Wireless & Bluetooth | Realtek® Wi-Fi RTL8821CE - WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 5.0 - Support for 11ac wireless standard |
