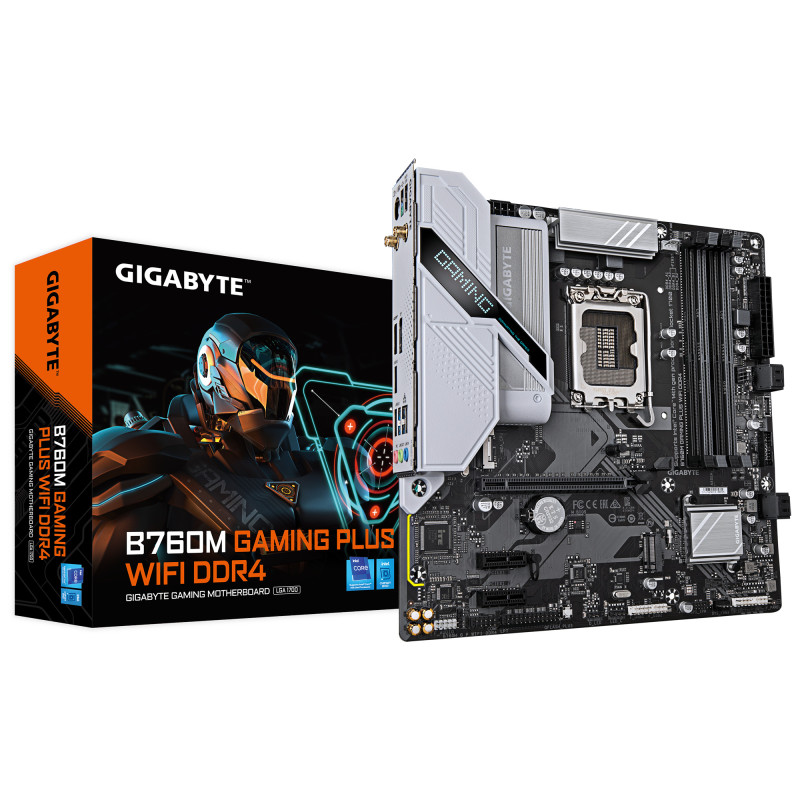

B760M GAMING PLUS WIFI DDR4/INTEL LGA1700/MATX/4x DDR4 up to 128GB/5333MHz/PCIe 4.0 x1 3.0 x1/M.2 x2
$171.82
Tax included
B760M GAMING PLUS WIFI DDR4 Supports Intel® Core™ 14th/ 13th /12th processors Unparalleled Performance：Hybrid 4+1+1 Phases Digital VRM Solution Dual Channel DDR4：4*DIMMs XMP Memory Module Support Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors Fast Networks：Wi-Fi 6 802.11ax, GbE LAN Extended Connectivity：Front USB-C® 5Gb/s, DP, HDMI Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
B760M GAMING PLUS WIFI DDR4/INTEL LGA1700/MATX/4x DDR4 up to 128GB/5333MHz/PCIe 4.0 x1 3.0 x1/M.2 x2
B760M GAMING PLUS WIFI DDR4
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 4+1+1 Phases Digital VRM Solution
- Dual Channel DDR4：4*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- Fast Networks：Wi-Fi 6 802.11ax, GbE LAN
- Extended Connectivity：Front USB-C® 5Gb/s, DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Supplier details
| Synnex SKU | GA-B760M-G-P-WIFI-D4 |
|---|---|
| Synnex Product Code | GA-B760M-G-P-WIFI-D4@GIGA |
| Synnex Category Code | MG01 |
| Brand | Gigabyte |
| Stock | 50 |
| Source URL | https://www.synnex.com.au/en/B2B/Menu/product-offering/ProductDetails/?productCode=GA-B760M-G-P-WIFI-D4%40GIGA |
Specifications
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
|---|---|
| Chipset | Intel® B760 Express Chipset |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| I/O Connectors | Back Panel Connectors: 2 x USB 2.0/1.1 ports, 1 x PS/2 keyboard/mouse port, 2 x SMA antenna connectors (2T2R), 1 x DisplayPort, 1 x HDMI port, 3 x USB 3.2 Gen 1 ports, 1 x RJ-45 port, 3 x audio jacks |
| Integrated CPU Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| PCI Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16; Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Processor Support | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors, L3 cache varies with CPU |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| RAM Type/Bus/Max | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules; 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Socket | LGA1700 socket |
| Storage Interface | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors |
| Wireless & Bluetooth | Realtek® Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard |
