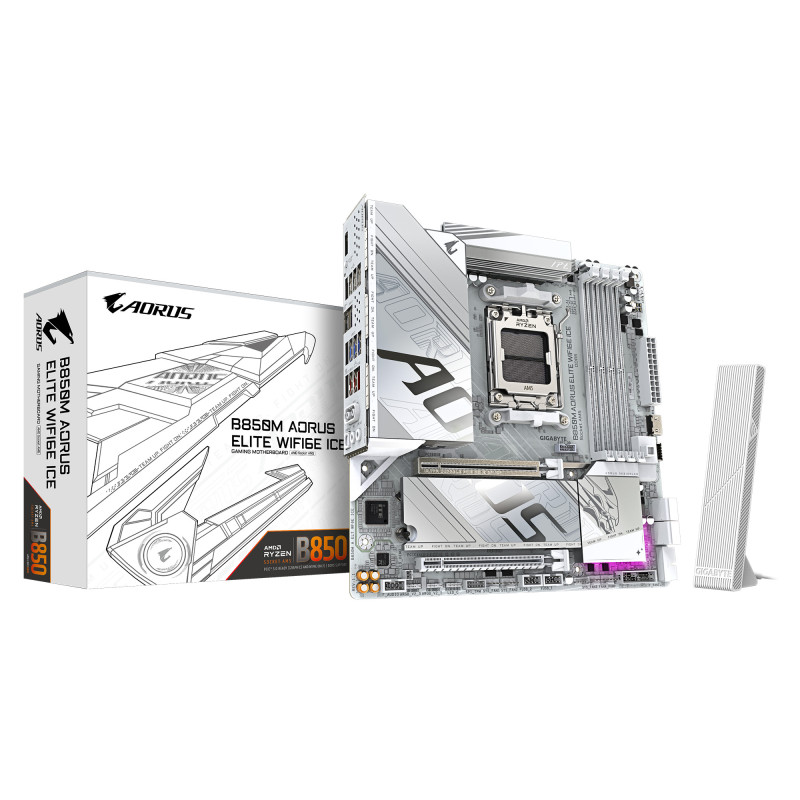

B850M AORUS ELITE WIFI6E ICE Motherboard Socket AM5 Supports AMD Ryzen Series Processors 4 x DIMMs, Dual Channel DDR5 AMD B850 c
$286.36
Tax included
GA-B850M-A-ELT-WF6E-ICE Key Features X3D Turbo Mode : Unleash new era gaming performance DDR5 OC up to 8200MT/s AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors Digital twin 12+2+2 phases VRM solution Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click : M.2 heatsinks with screwless design Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW. Ultra-Fast Storage : 2*M.2 slots, including PCIe 5.0 x4 Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext. Fast Networking : 2.5GbE ...
B850M AORUS ELITE WIFI6E ICE Motherboard Socket AM5 Supports AMD Ryzen Series Processors 4 x DIMMs, Dual Channel DDR5 AMD B850 c
GA-B850M-A-ELT-WF6E-ICE
Key Features
- X3D Turbo Mode : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 12+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage : 2*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- Fast Networking : 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
- Extended Connectivity : HDMI,Displayport
- PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Supplier details
| Synnex SKU | GA-B850M-A-ELT-WF6E-ICE |
|---|---|
| Synnex Product Code | GA-B850M-A-ELT-WF6E-ICE@GIGA |
| Synnex Category Code | MG01 |
| Brand | Gigabyte |
| Stock | 20 |
| Source URL | https://www.synnex.com.au/en/B2B/Menu/product-offering/ProductDetails/?productCode=GA-B850M-A-ELT-WF6E-ICE%40GIGA |
Specifications
| Audio | Realtek® Audio CODEC (Only for rev. 1.0)- High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out; Realtek® ALC1220 CODEC (Only for rev. 1.1)- High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out |
|---|---|
| Chipset | AMD B850 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| I/O Connectors | 1 x DisplayPort, 1 x Q-Flash Plus button, 4 x USB 2.0/1.1 ports, 5 x USB 3.2 Gen 1 ports, 2 x USB 3.2 Gen 2 Type-A ports (red), 1 x USB Type-C® port, with USB 3.2 Gen 2 support, 1 x RJ-45 port, 2 x antenna connectors (2T2R), 2 x audio jacks, 1 x optical S/PDIF Out connector |
| Integrated CPU Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. - 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version. |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| PCI Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
| Processor Support | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| RAM Type/Bus/Max | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Socket | AMD Socket AM5 |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs, AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs, AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs; 4 x SATA 6Gb/s connectors |
| Warranty | 3 years |
| Wireless & Bluetooth | Realtek® Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard |
