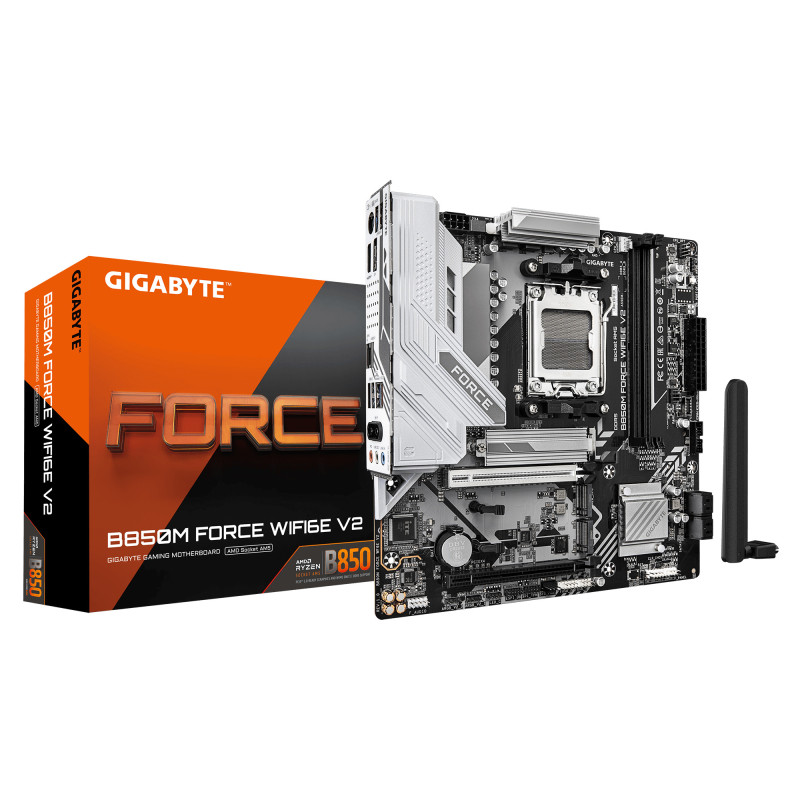

AMD AM5 B850/rev.1.0 Micro ATX/MT7902

$195.45
Tax included

B850M FORCE WIFI6E V2 Key Features X3D Turbo Mode to unleash new era gaming performance AMD Socket AM5 : Supports AMD Ryzen™ 9000/8000/ 7000 Series Processors Digital 8+2+2 phases VRM solution Dual Channel DDR5 : 2*DIMMs with AMD EXPO™Memory Module Support WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation EZ-Latch : PCIe x16 Slot with Quick Release Design Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW. Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4 Fast Networking : 802.11ax Wi-Fi6E and 2.5GbE LAN Extended Connectivity : DP, HDMI

Quantity

AMD AM5 B850/rev.1.0 Micro ATX/MT7902

B850M FORCE WIFI6E V2

Key Features

  • X3D Turbo Mode to unleash new era gaming performance
  • AMD Socket AM5 : Supports AMD Ryzen™ 9000/8000/ 7000 Series Processors
  • Digital 8+2+2 phases VRM solution
  • Dual Channel DDR5 : 2*DIMMs with AMD EXPO™Memory Module Support
  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch : PCIe x16 Slot with Quick Release Design
  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
  • Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
  • Fast Networking : 802.11ax Wi-Fi6E and 2.5GbE LAN
  • Extended Connectivity : DP, HDMI

Supplier details

Synnex SKUGA-B850M-FORCE-WF6E-V2
Synnex Product CodeGA-B850M-FORCE-WF6E-V2@GIGA
Synnex Category CodeMG01
BrandGigabyte
Stock100
Source URLhttps://www.synnex.com.au/en/B2B/Menu/product-offering/ProductDetails/?productCode=GA-B850M-FORCE-WF6E-V2%40GIGA

Specifications

AudioRealtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel
ChipsetAMD B850
Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
I/O Connectors1 x HDMI port, 1 x DisplayPort, 1 x PS/2 keyboard/mouse port, 1 x USB Type-C® port, with USB 3.2 Gen 1 support, 2 x USB 3.2 Gen 1 ports, 1 x USB 3.2 Gen 2 Type-A port (red), 2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 2 x antenna connectors (1T1R), 3 x audio jacks
Integrated CPU GraphicsIntegrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
PCI Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode, AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode; Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Processor SupportAMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors
RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
RAM Type/Bus/MaxSupport for DDR5 9600(OC)/ 9200(OC)/ 8800(OC)/ 8600(OC)/ 8400(OC)/ 8200(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules; 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support forAMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
SocketAMD Socket AM5
Storage Interface1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs, AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs, AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs; 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x2 SSDs; 4 x SATA 6Gb/s connectors
Wireless & BluetoothMediaTek Wi-Fi 6E MT7902 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard
Gigabyte
GA-B850M-FORCE-WF6E-V2
100 Items
