LGA1851 socket,Intel H810 Express Chipset, Support for DDR5 6400/5600 MT/s memory modules, Integrated Graphics Processor-Intel H
$171.82
Tax included
H810M GAMING WIFI6 GEN5 Key Features PCIe Gen5 Performance Supports Intel® Core™ Ultra processors (Series 2) WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation EZ-Latch: PCIe 5.0x16 Slot with Quick Release Design M.2 EZ-Latch : Screwless installation for M.2 SSDs Friendly UI: Multi-Theme, and Q-Flash Auto Scan in BIOS and SW Ultra-Fast Storage: PCIe 4.0 x4 M.2 slots Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Fast Networking: 2.5GbE LAN & Wi-Fi 6 802.11ax Extended Connectivity: HDMI, DisplayPort
LGA1851 socket,Intel H810 Express Chipset, Support for DDR5 6400/5600 MT/s memory modules, Integrated Graphics Processor-Intel H

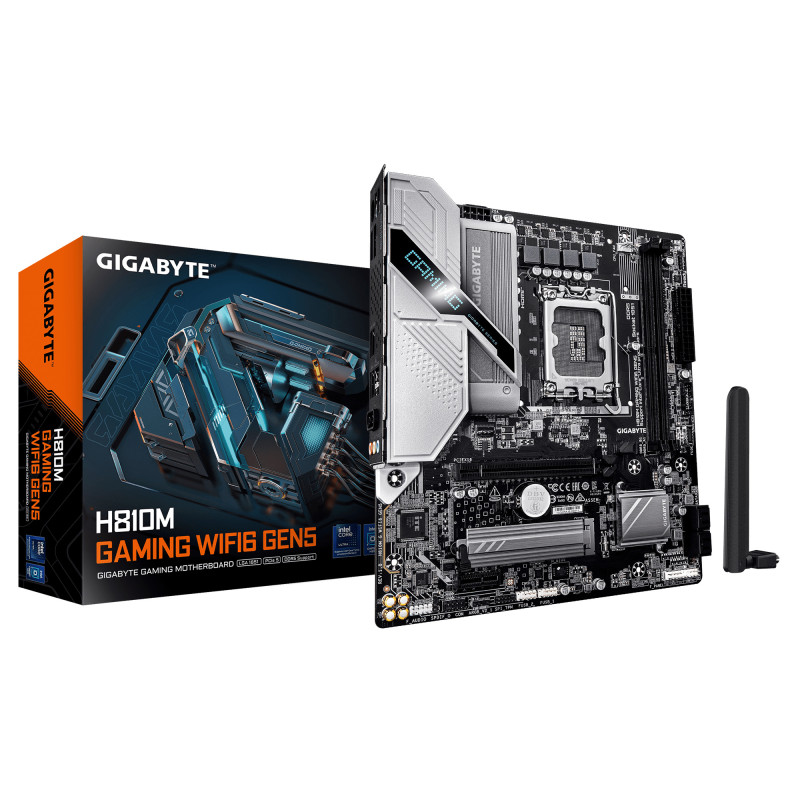

H810M GAMING WIFI6 GEN5
Key Features
- PCIe Gen5 Performance
- Supports Intel® Core™ Ultra processors (Series 2)
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch: PCIe 5.0x16 Slot with Quick Release Design
- M.2 EZ-Latch : Screwless installation for M.2 SSDs
- Friendly UI: Multi-Theme, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage: PCIe 4.0 x4 M.2 slots
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking: 2.5GbE LAN & Wi-Fi 6 802.11ax
- Extended Connectivity: HDMI, DisplayPort
Supplier details
| Synnex SKU | GA-H810M-G-WIFI6-GEN5 |
|---|---|
| Synnex Product Code | GA-H810M-G-WIFI6-GEN5@GIGA |
| Synnex Category Code | MG01 |
| Brand | Gigabyte |
| Stock | 100 |
| Source URL | https://www.synnex.com.au/en/B2B/Menu/product-offering/ProductDetails/?productCode=GA-H810M-G-WIFI6-GEN5%40GIGA |
Specifications
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
|---|---|
| Chipset | Intel® H810 Express Chipset |
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm |
| I/O Connectors | 1 x PS/2 keyboard/mouse port, 1 x HDMI port, 1 x DisplayPort, 1 x USB 3.2 Gen 1 port, 5 x USB 2.0/1.1 ports, 1 x RJ-45 port, 2 x antenna connectors (1T1R), 3 x audio jacks |
| Integrated CPU Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@60 Hz |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| PCI Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16); Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| Processor Support | LGA1851 socket: Support for Intel® Core™ Ultra Processors |
| RAM Type/Bus/Max | Support for DDR5 6400/5600 MT/s memory modules; 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Socket | LGA1851 socket |
| Storage Interface | Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) - 4 x SATA 6Gb/s connectors |
| Wireless & Bluetooth | Realtek® Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11ax 80MHz wireless standard |
